Truss clamp swivel coupler

Beskrivelse

• Designed to suit 48–51-mm (1.89–2.01-in) diameter tubes
• Supplied with M12 eye bolt and wingnut
• Precision-extruded high-tensile aluminium alloy
• Mounting hole suitable for up to 13-mm (0.51-in) bolts
• DGUV V17 / BGV C1 rating
• Polished surface with micro-percussion marking
• Compatible with M290 / M390 / M400 / M520 / M760 / 4 GS-35 / 4GS-50 / 4GS-62 series truss

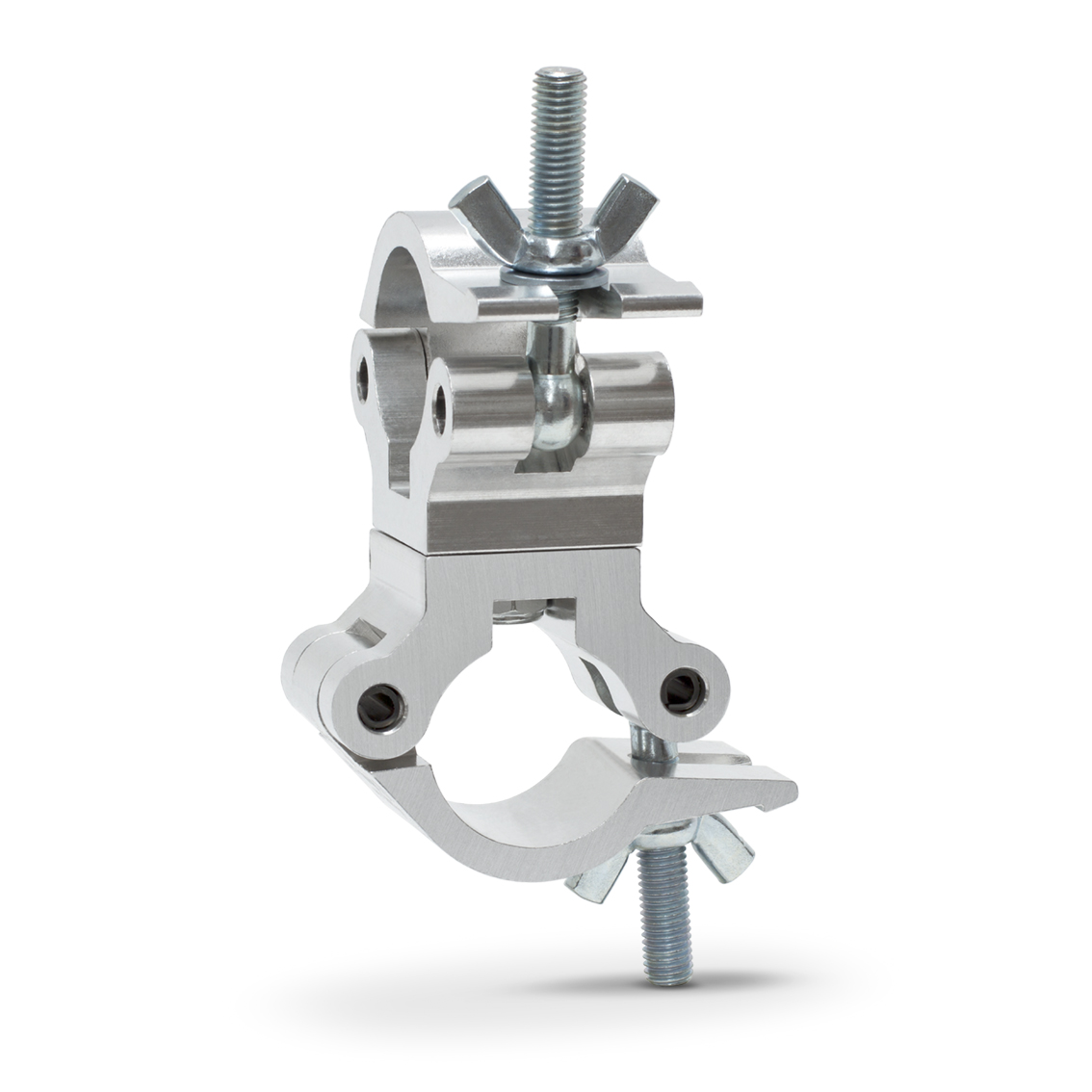

The CELL204 swivel coupler is a versatile and high-performance rigging solution designed to connect two 48–51-mm (1.89–2.01-in) diameter tubes with full 360° rotation.
This set of two clamps offers unparalleled flexibility, making it ideal for dynamic set-ups in concerts, exhibitions and structural installations where precise positioning is essential.
Constructed from precision-extruded high-tensile aluminium alloy, the CELL204 clamp delivers exceptional strength and durability while remaining lightweight and easy to handle.
With a WLL of 540 kg (1190 lbs) with a safety factor of 8:1 in accordance with DGUV V17/BGV C1 and 1080 kg (2381 lbs) with a safety factor of 4:1 in accordance with 2006/42/EC, it’s engineered to perform reliably in even the most demanding environments.
Built for seamless integration, the CELL204 swivel coupler is compatible with a wide range of truss systems, including M290, M390, M400, M520, M760, 4GS-35, 4GS-50 and 4GS-62.
It comes supplied with an M12 bolt and a wingnut for quick, tool-free attachment to the truss, and features a mounting hole that accommodates bolts up to 13 mm (0.51 in) for securely fixing equipment.
The coupler’s polished surface with micro-percussion markings ensures a professional appearance, while powder-coated versions are available on request for a custom finish.
Whether you’re creating complex rigging configurations or need a flexible connection solution, the CELL204 swivel coupler offers the perfect blend of strength, adaptability and ease of use.
