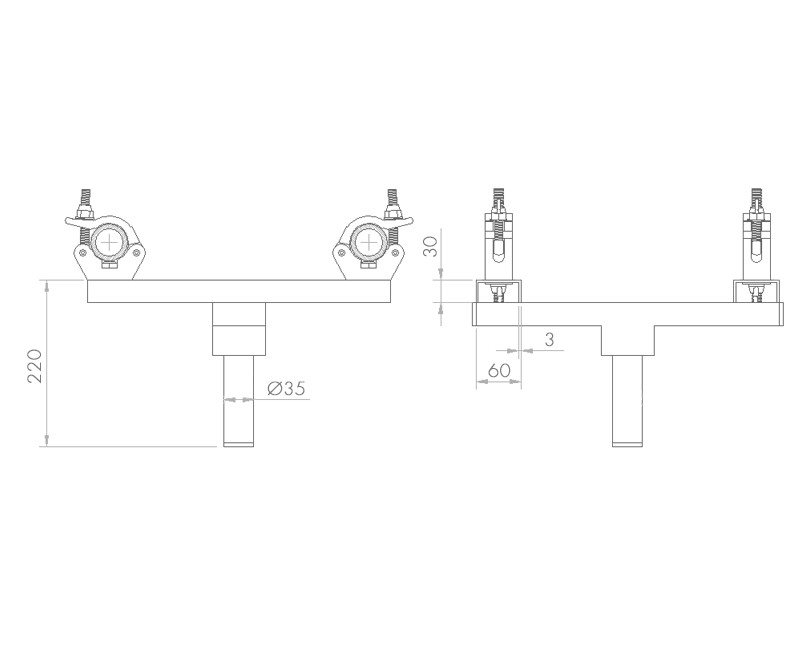

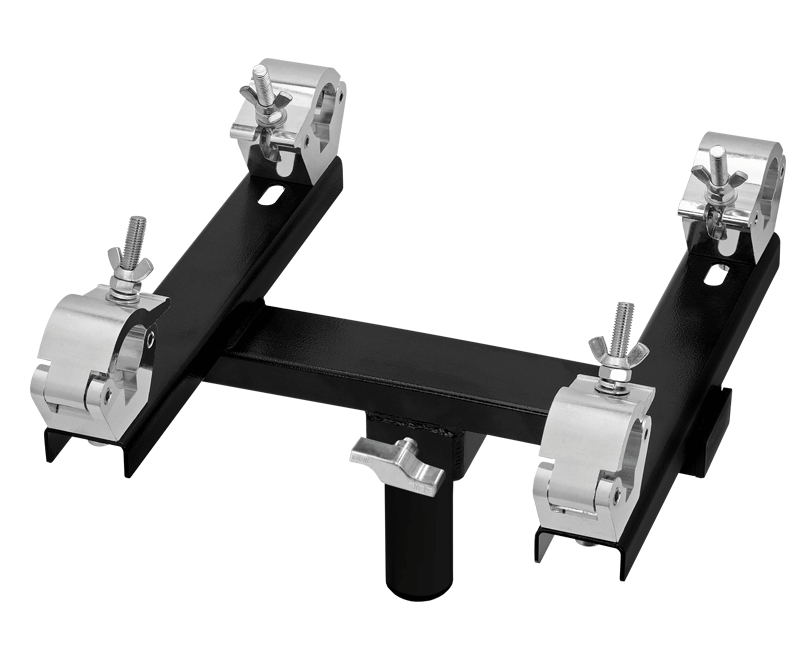

Truss adaptor fitted with couplers & a Ø 35 mm spigot

Beskrivelse

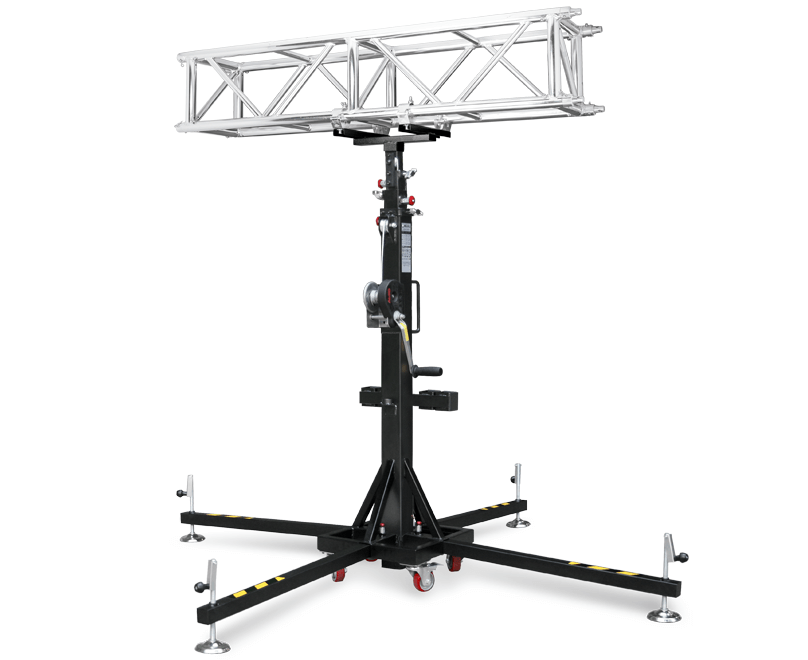

Adjustable truss adaptor with 4 aluminium couplers to use truss in “T” arrangement. It is fitted with a Ø 35 mm insertion spigot ending that has a square strengthening ferrule, removing the possibility of the top tube of the tower being damaged due to horizontal forces. Our truss adaptor ref. ADT-30 offers maximum safety and functionality for your events.
Adjustable: Thanks to its adjustable system, just one adaptor can be used for different size trusses: from 29 cm to 40 cm.
Swivelling: The couplers that are provided with the adaptor are swivelling, this way the truss can be fitted to the adaptor in any required position, offering professionals multiple set-up possibilities.
It comes with 4 aluminium couplers: The truss is fitted to the adaptor by means of 4 aluminium couplers ref. ABZ-29 (WLL: 500 kg).
These reinforced couplers are designed to be used on trusses with an external diameter of 45 mm to 52 mm.
