kr 84 450,00

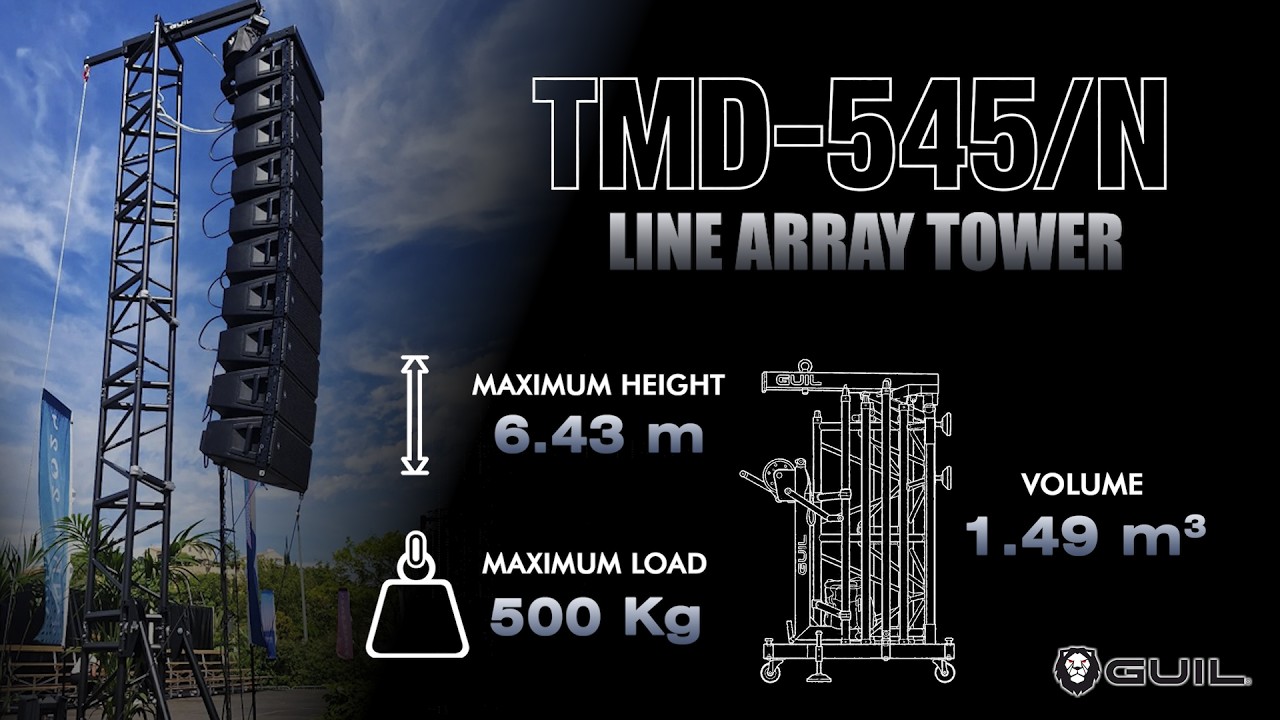

The TMD-545/N is a Rigging tower for Line Array Systems specially designed to reliably lift speakers of up to 500 kg to a maximum height of 6.25 m using a manual 2000 kg chain hoist.
GUIL’s engineers have created a totally innovative tower, certified for outdoor use, that can be assembled and operated by a single person, with just two minutes help from a colleague during assembly.
The TMD-545/N is fitted with a double-handled winch, which makes the work of setting up the tower quicker and easier.

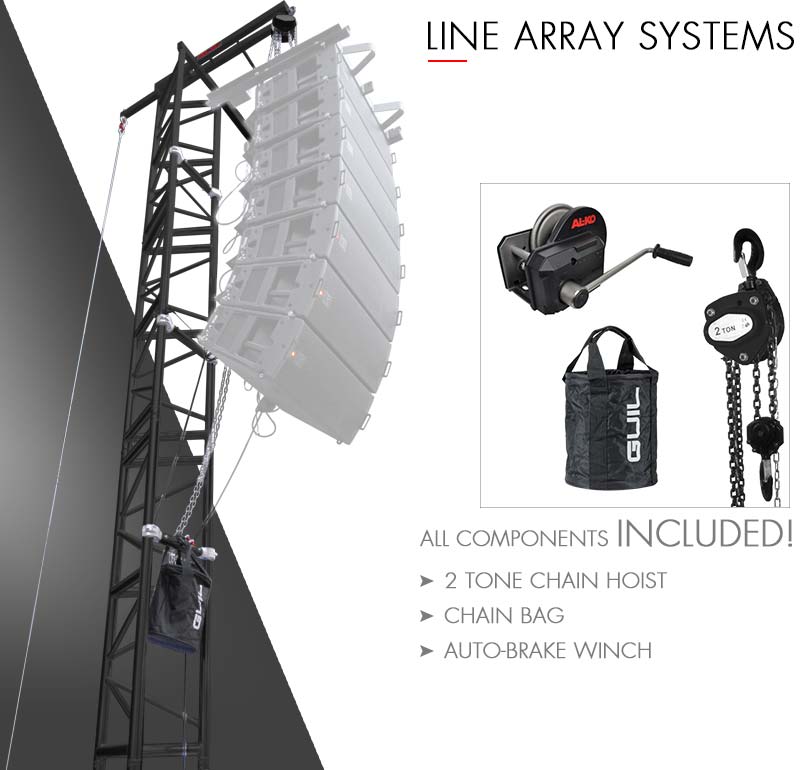

The TMD-545/N comes totally equipped with all components and elements necessary for use: complete operating structure, with chain hoist for lifting and double-handled winch for set-up, etc.
You get a complete tower, ready to go straight out of the box. Its meticulous design offers easy assembly and handling, and the whole tower occupies only 1.49 m3 in one single block when stowed.
The TMD-545/N is supremely manoeuvrable, easy to store, transport and position, and offers safety, strength and reliability for the user.
One of the most convenient and functional towers on the market, it is the perfect solution for touring!

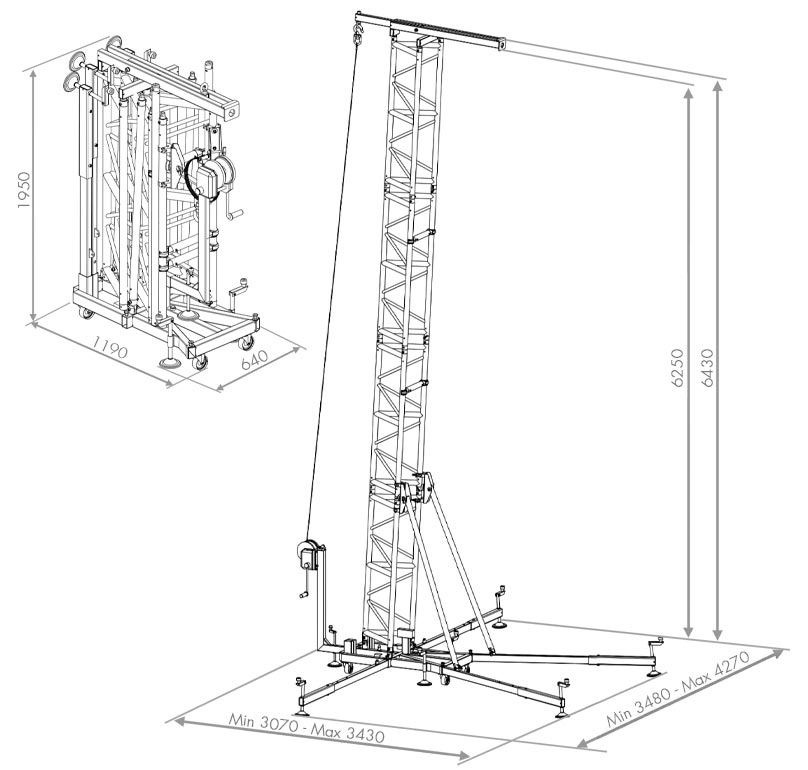

| SPECIFICATIONS | TMD-545/N |
| Maximum Overall Height: | 6.43 m |
| Maximum Working Height: | 6.25 m |
| Maximum Load: | 500 kg |
| PA System lifted by: | 2000 kg Chain hoist (Included) |
| Tower Structure lifted by: | Auto Brake Winch with two handles (Included) |
| Mast Sections – Stacking Truss: | 500 x 500 mm (4 units. Lenght: 1500 mm) |
| Material: | Aluminium (alloy 6082-T6) & Steel. BLACK Finish |
| Folded Height: | 1.95 m (Compact Design) |
| Volume: | 1.49 m3 (64 x 119 x 195 cm). Everthing in 1 piece |
| Use: | For OUTDOOR and Indoor use |

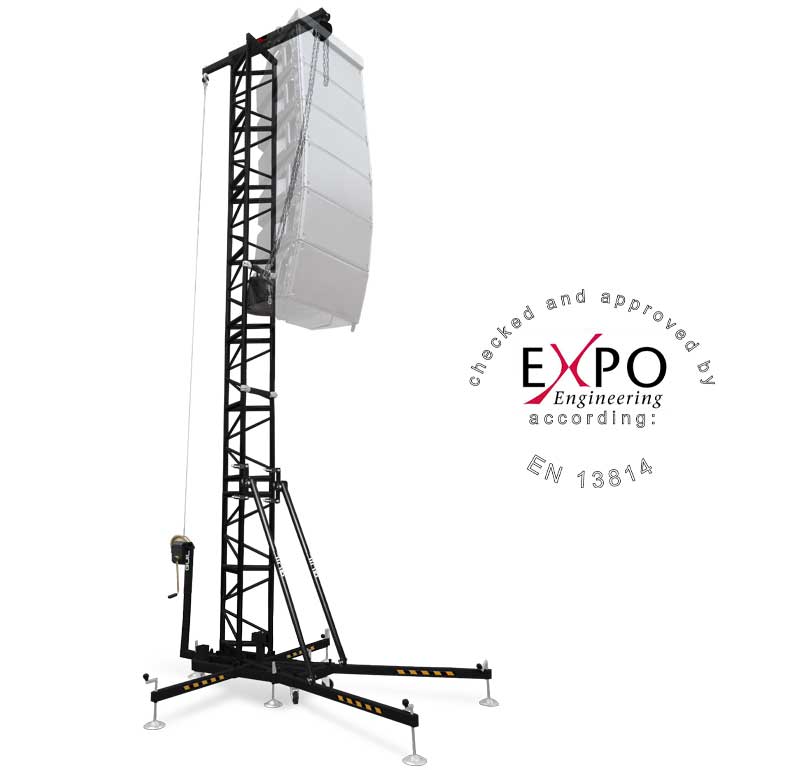

| Certified for outside use: | According to: EN 13814 |
| Checked for wind speed up to: 8 Beaufort | |
| Complies with Standards: | EN 13814 2006/42/CE EN 17206 (Replaces DIN 56950-1) DGUV 17 & 18, DGUV Norma 115-002 (Formerly BGV-C1) |
| Net Weight: | 190 kg (All components included) |
| Interactive application: | “TMD-545/N APC” (Included) |
| Vekt | 190 kg |
|---|
