kr 40 425,00

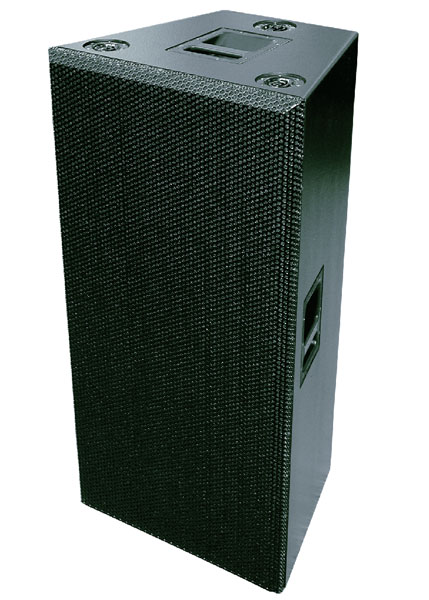

The MTI BR 252 is a high power, arrayable loudspeaker system designed to perform in a wide range of large scale professional sound reinforcement applications.
The BR 252 is a two-way bi-amplified system consisting of two 15″ low frequency drivers in a heavily braced, trapezoid, vented enclosure and a single 2″ exit compression driver mounted on a 90 x40 horn.
The system can be used with or without the optional subbass, and has full flying facilities as standard. The extremely high output coupled with low distortion and extended frequency response makes the system ideal for use in high power sound reinforcement situations.
Features
Applications
The BR 252 can be combined with sub-bass units available from the MTI audio range.
The BR 252 is designed to be used in conjunction with the MTI MPA 82000 amplifier which maximises bandwidth and protects drivers from damage in all modes of operation.
Specifications
Type: Two way active high power one box sound reinforcement system
Bandwidth: 40-20 kHz +/-3 dB via MPA 82000
Drivers: 2×15″ LF cone transducer 1×2″ exit compression driver
Rated power: (LF) 600 watts RMS 1200 Watts programme (HF) 65 watts RMS 300 watts programme
Rec. amplifier: MPA 82000
Sensitivity: 102 dB (note 1)
SPL: 130 dB continuous, 138 dB peak (note 2)
Impedance: (LF) 4 Ohms nominal (HF) 8 Ohms nominal
Dispersion -6 dB points: 90 horizontal 40 vertical
Crossover: Active: 630 Hz
Enclosure: 260 litre ported heavily braced, birch plywood, quasi trapezoid
Finish: Textured black paint
Protection grill: Foam backed 2 mm perforated steel, black painted with 49% free air flow
Connectors: 4 x Speakon
Fittings: 6 pcs. aeroquip flying points (optional)
Dimensions: (W)585 mm x (H)1175 mm x (D)495 mm
Weight: 74 kg
Note 1: Measured in half-space conditions at 1 metre with 2.83V input,
using band limited pink noise.
Note 2: Measured at 1 metre using band limited pink noise.
