kr 16 830,00

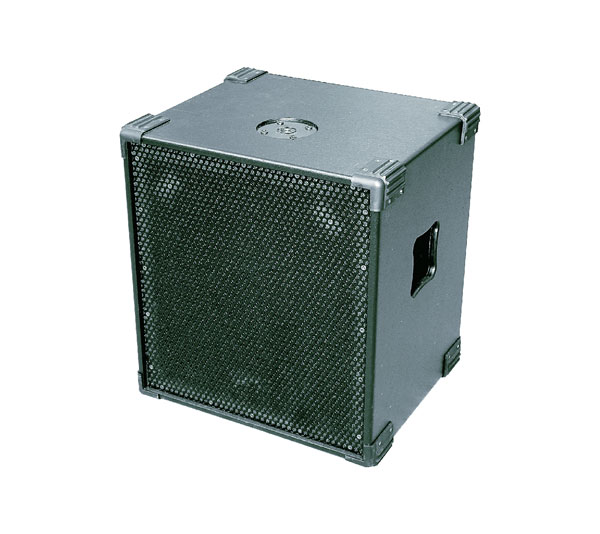

The MTI BR 151 sub-bass system is a dedicated sub woofer designed for special effects and ultra-low frequency performance. It is mainly
designed to extend the power bandwidth of MTI reinforcement systems to 40 Hz.
The unique, heavily braced enclosure is a reflex loaded design which houses one high efficiency 15″ long excursion driver for extended low frequency response.
Its internally braced construction prevents energy absorption by cabinet walls at the very high pressures generated within the enclosure. For large scale sound reinforcement, BR 151 enclosures can be close stacked on the ground.
Feature
Applications
The BR 151 can be combined with sub-bass units available from the MTI audio range.
The BR 151 is designed to be used in conjunction with the MTI MPA 82000 amplifier which maximises bandwidth and protects drivers from damage in all modes of operation.
Specifications
Type: Ultra low frequency sub-bass system
Bandwidth: 40-350 Hz +/- 3 dB
Drivers: One low frequency 15″ cone transducer with 4″ voice coil
Rated power: 500 watts RMS 1200 Watts programme
Rec. amplifier: MPA 82000
Sensitivity: 96 dB (note 1)
SPL: 123 dB continuous, 129 dB peak (note 2)
Impedance: 8 Ohms nominal
Crossover: 80-350 Hz depend upon application
Enclosure: 90 litre ported heavily braced, birch plywood
Finish: Textured black paint
Protection grill: Foam backed 2 mm perforated steel, black painted with 49% free air flow
Connectors: 2 x Speakon
Dimensions: (W)490 mm x (H)530 mm x (D)425 mm
Weight: 32 kg
Note 1: Measured in half-space conditions at 1 metre with 2.83V input,
using band limited pink noise.
Note 2: Measured at 1 metre using band limited pink noise.
