MTI BR122

Beskrivelse

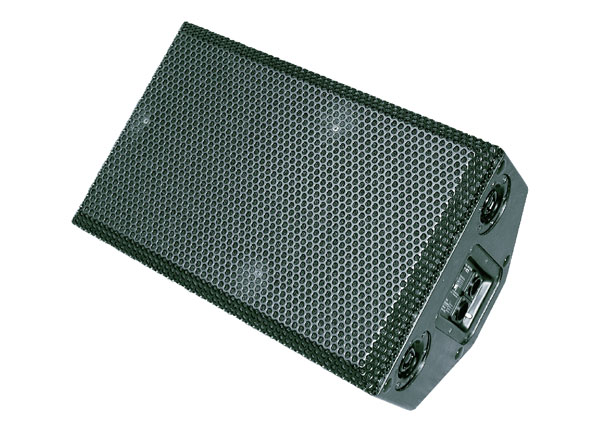

The MTI BR 122 is an exceptionally compact loudspeaker system characterised by its remarkable vocal clarity, designed for professional applications, where high output andlinear frequency response is required.
The unique, heavily braced enclosure, is extremely efficient and combines superior dynamic performance with an innovative cabinet configuration, which enabling the BR 122 to be used in numerous applications.
Due to its quasi trapezoid shape, the BR 122 can be utilised as an extremely high power wedge monitor. The six flying points (optional)and the loudspeaker stand adaptor enables the BR 122 to be hung or arranged in any position, increasing the tremendous versatility of this unit.
Features

• Proprietary 12″ low frequency driver. Cooling rings permit high sound pressure levels with extremely low distortion.
• Proprietary 2″ compression driver with extremely low distortion.
• 90° x 40° high frequency horn gives wide, even dispersion minimising feedback.
• Single passive/active mode switch.
• Unique, heavily braced, quasi trapezoid cabinet, allows for both left and right hand stage positioning.
• Six flying points (optional) Recessed speaker stand socket.

Applications

• High power stage monitor
• Theatre public address systems
• Live club sound amplification
• Music playback systems for discotheques.

The BR 122 can be combined with sub-bass units available from the MTI audio range.
The BR 122 is designed to be used in conjunction with the MTI MPA 82000 amplifier which maximises bandwidth and protects drivers from damage in all modes of operation.
Specifications
Type: Two way passive/active high power multipurpose monitor
Bandwidth: 65-20 kHz +/-3 dB via MPA 82000
Drivers: 12″ LF cone transducer 2″ exit compression driver
Rated power: (LF) 300 watts RMS 1100 Watts programme
(HF) 65 watts RMS 300 watts programme
Recom. amplifier:MPA 82000
Sensitivity: 98 dB (note 1)
SPL: 124 dB continuous, 137 dB peak (note 2)
Impedance: (LF) 8 Ohms nominal (HF) 8 Ohms nominal
Dispersion -6 dB points: 90 horizontal 40 vertical
Crossover: Active: 800 Hz Passive: 800 Hz
Enclosure: 40 litre ported heavily braced, birch plywood, quasi trapezoid
Finish: Textured black paint
Protection grill: Foam backed 2 mm perforated steel, black painted with 49% free air flow
Connectors: 4 x Speakon
Fittings: Tripod socket 6 pcs. aeroquip flying points (optional)
Dimensions: (W)370 mm x (H)585 mm x (D)305 mm
Weight: 29,5 kg

Note 1: Measured in half-space conditions at 1 metre with 2.83V input, using band limited pink noise.
Note 2: Measured at 1 metre using band limited pink noise.
