kr 60 630,00

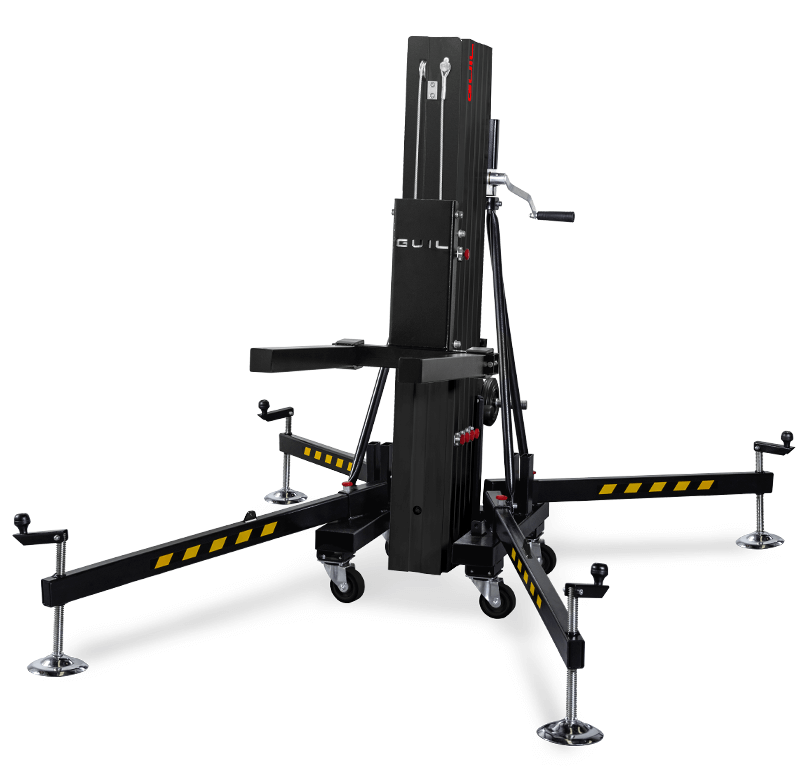

Lifting Tower designed to lift loads of up to 320 kg up to a maximum height of 6 m.
Lifting towers developed for loading heavy weights at a great height. Its user friendly, compact design and great strength, make the ULK Lift an ideal complement for any kind of event.

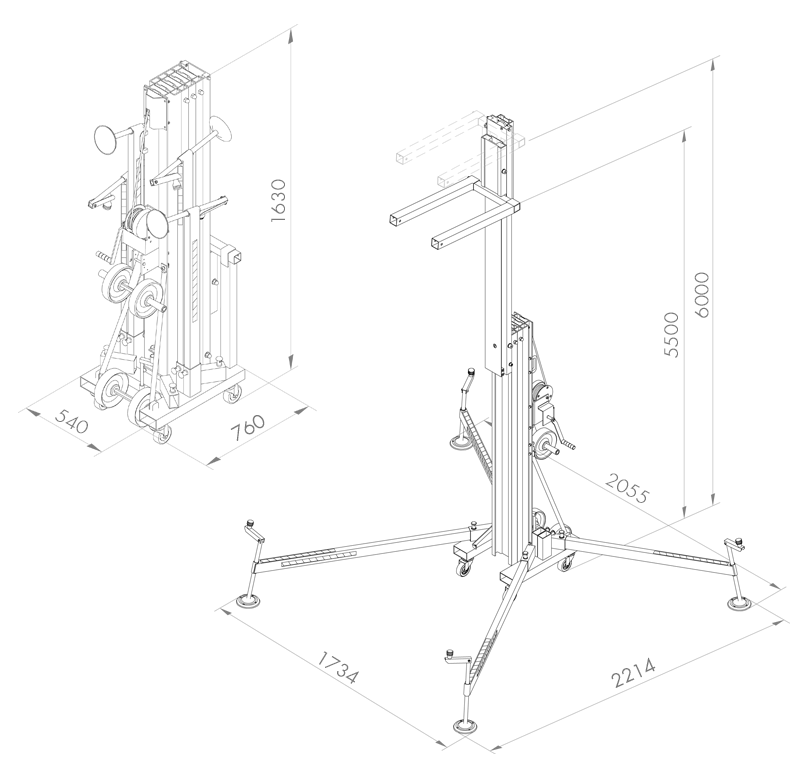

| SPECIFICATIONS | ULK 600 |
| Maximum Height | 6 m |
| Maximum Load | 320 kg |
| Safety Systems | ASB System (Automatic Safety Blocking System) |
| IPB System (Internal Pendulum Brake) + MSU System | |
| Brake Winch | Double-handled |
| Height stowed | 1.60 m |
| Horizontal Transport | Included (4 x Ø 150 mm wheels, 2 of them with 3 positions) |
| Wheels | Secured to the base with 4 fixing points |
| Leveller screw jacks | Trapezoidal thread TR24x5. Greater durability and speed |
| Material | Aluminium (alloy EN AW 6082-T6) & Steel. BLACK Colour |
| Complies with Standards | DGUV 17 & 18, DGUV Rule 115-002 (Formerly BGV-C1) |
| DIN EN 17206 (Replaces DIN 56950-1), 2006/42/CE | |
| Net Weight | 190 kg |
| Sections | 5 Sections – Profile dimension (width): 181 mm |
