Beskrivelse

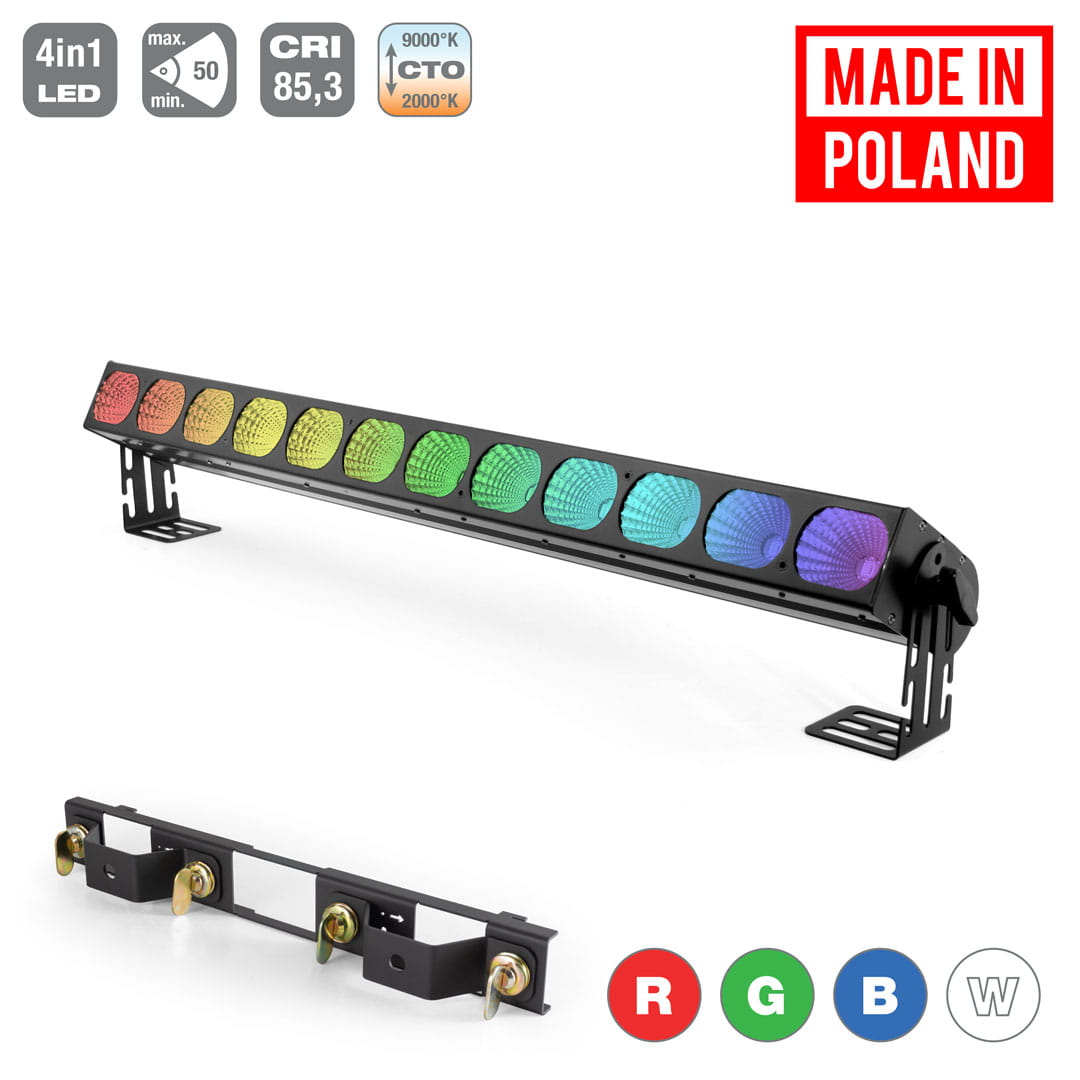

The device is equipped with a stylized halogen lamp that has all the advantages of a LED light source, such as: full control over each of the colors from the RGBW palette, excellent energy efficiency or instant response to the control signal.
At the same time, by enabling the «Dim delay» function available in the Mk2 software, you get a perfect simulation of incandescent light behavior, and also a look of a classic halogen light source.
This innovative solution will work perfectly in all installations where both a sophisticated, stylish design as well as reliability, the comfort and convenience of control and configuration are required – the greatest advantages of modern LED fixtures.
Features
- 12 sections controlled separately by DMX
- 16-bit dimming resolution
- Various dimming curves for smooth dimming in 8-bit mode
- Dim delay (light bulb simulation)
- Full DMX signal regeneration
- Electronic protection against overheating
- THEATRE or DISCO cooling volume modes.
- Permanent color correction
- Native support for optional wireless DMX module
Specification
- Power consumption: 400W
- Power supply voltage: 100 – 245V
- Voltage frequency: 50/60Hz
- Fuse: F7AL
- Diode type: COB
- Number of diodes: 12
- Diode power: 30W
- Display: Color LCD
- Color: RGBW
- Beam angle: 50°
- Dimming: Linear: 0 – 100%
- Flash frequency (min): 1Hz
- Flash frequency (max): 20Hz
- DMX standard: DMX 512
- Control interface: 4 buttons
- Operating modes: DMX512, Auto, Sound-controlled, Master / Slave
- Features: 16-bit dimming, various dimming curves, bulb simulation, DMX Signal regeneration, Electronic protection against overheating
- AC IN: powerCON
- AC OUT: powerCON
- DMX IN: XLR – 3 pin
- DMX OUT: XLR – 3 pin
- IP Rating: IP20
- Housing made: Aluminum
- Cooling: Active
- Height [cm]: 8 [with packaging 16]
- Width [cm]: 97 [with packaging 107]
- Depth [cm]: 19 [with packaging 22]
- Weight [kg]: 5,2 [with packaging 6,4]
